NR Series BATTERY / CHARGING  CHARGING SYSTEM  P160200  Deterioration of Battery Low Capacity


DESCRIPTION

The ECM determines the battery status according to the voltage of the BATT terminal while the engine is running (not cranking).

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Memory Note
P160200 Deterioration of Battery Low Capacity Battery capacity is low for 10 seconds or more when the engine is running (not cranking).
(1 trip detection logic)
·

Battery

·

Wire harness or connector


Charge warning is not displayed DTC stored SAE: P1602

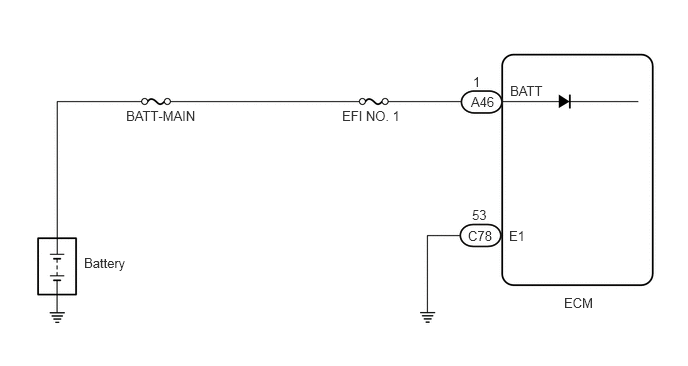

WIRING DIAGRAM

A429845E04
5.313,0.865 5.927,1.063 0.615,0.198 10 false BATT 4.906,0.979 5.521,1.177 0.615,0.198 10 false A46 4.875,2.375 5.49,2.573 0.615,0.198 10 false C78 5.875,3.073 6.49,3.271 0.615,0.198 10 false ECM 4.927,0.771 5.542,0.969 0.615,0.198 10 false 1 4.917,2.156 5.531,2.354 0.615,0.198 10 false 53 5.302,2.375 5.917,2.573 0.615,0.198 10 false E1 3.563,1.125 4.469,1.531 0.906,0.406 10 false EFI NO. 1 1.313,1.125 2.281,1.438 0.969,0.313 10 false BATT-MAIN 0.875,2.656 1.521,2.854 0.646,0.198 10 false Battery

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.


PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine / Trouble Codes.


e.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
Only DTC P160200 is output A
DTC P160200 and other DTCs are output B


HINT:

If any DTCs other than P160200 are output, troubleshoot those DTCs first.




A

2.CHECK CHARGING SYSTEM

B

GO TO DTC CHART

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>CHARGING SYSTEM>DIAGNOSTIC TROUBLE CODE CHART


2.CHECK CHARGING SYSTEM
a.

Check the charging system.

Click herePower Source / Network>NR Series (BATTERY / CHARGING)>CHARGING SYSTEM>ON-VEHICLE INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CHARGING SYSTEM

3.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
A371640C30
1.583,0.76 1.958,0.979 0.375,0.219 0.927,2.646 1.229,1.521 true 0.083,0.042 0.396,0.24 0.313,0.198 10 false *a 0.76,2.677 1.375,2.875 0.615,0.198 10 false BATT 1.646,0.792 2.26,0.99 0.615,0.198 10 false A46

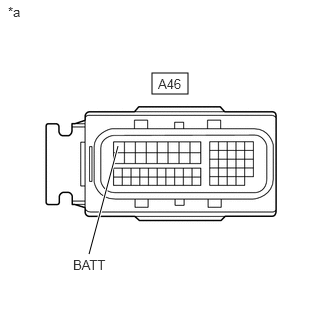

*a Front view of wire harness connector
(to ECM)


a.

Disconnect the A46 ECM connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A46-1 (BATT) - Body ground Always 11 to 14 V



Result:
Proceed to
OK
NG



OK

CHECK FOR INTERMITTENT PROBLEMS

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>CHECK FOR INTERMITTENT PROBLEMS


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - ECM)
