NR Series BATTERY / CHARGING  CHARGING SYSTEM  PARTS LOCATION

ILLUSTRATION

1.333,4.615 1.604,4.615 1.604,4.615 2.521,3.25 true 4.917,5.406 4.615,5.406 4.615,5.406 4.073,3.417 true 2.625,1.063 2.896,1.063 2.896,1.063 4.021,3.021 true 2.146,1.646 2.344,1.646 2.344,1.646 3.552,3.427 true 1.125,4.531 1.438,4.729 0.313,0.198 10 false *1 1.927,1.563 2.24,1.76 0.313,0.198 10 false *2 5,5.333 5.313,5.531 0.313,0.198 10 false *3 2.427,0.979 2.74,1.177 0.313,0.198 10 false *4

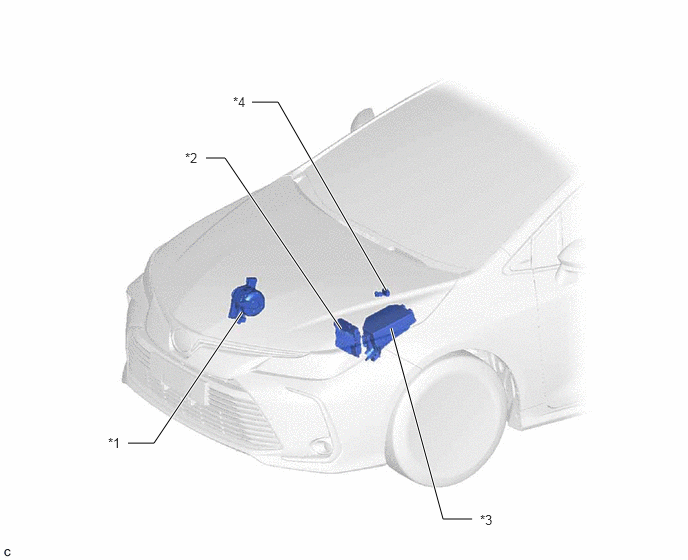

*1	GENERATOR ASSEMBLY	*2	ECM
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY	*4	BATTERY STATE SENSOR ASSEMBLY

ILLUSTRATION

2.313,2.177 2.469,0.833 2.469,0.833 2.75,0.833 true 2.823,0.75 3.135,0.948 0.313,0.198 10 false *1

*1

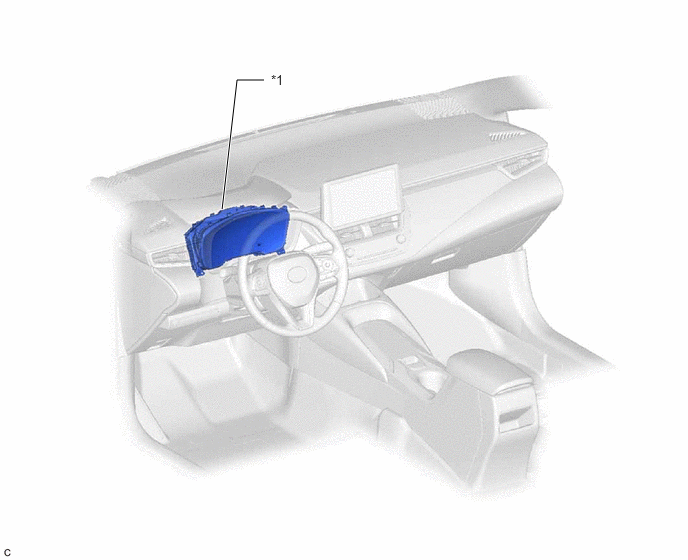

COMBINATION METER ASSEMBLY

-

-
