LIGHTING (EXT)  SWITCH HOUSING  INSPECTION


PROCEDURE

Hide 84319 1.INSPECT STEERING WHEEL SWITCH HOUSING

E361928C57
0.75,0.583 1.083,0.833 0.333,0.25 6.083,0.583 6.417,0.833 0.333,0.25 2.667,3.833 3,4.083 0.333,0.25 2.573,5.781 2.656,5.031 true 6.313,1.875 6.396,1.375 true 6.083,2.688 6.167,2.188 true 6.396,2.688 6.313,2.188 true 5.667,2.521 5.917,2.188 true 6.833,2.521 6.583,2.188 true 5.875,2.688 6.042,2.188 true 6.615,2.688 6.448,2.188 true 0.969,1.875 1.052,1.375 true 1.104,1.875 1.271,1.375 true 0.417,1.875 0.083,1.375 true 0.083,2.698 0.417,2.198 true 0.313,2.698 0.563,2.198 true 0.531,2.698 0.698,2.198 true 0.75,2.698 0.833,2.198 true 1.271,2.698 1.104,2.198 true 0.698,1.875 0.531,1.375 true 3.615,5.781 3.115,5.031 true 2.396,5.781 2.563,5.031 true 2.219,5.781 2.469,5.031 true 2.042,5.781 2.375,5.031 true 1.865,5.771 2.281,5.021 true 2.188,4.802 2.271,4.302 true 2.271,4.802 2.438,4.302 true 2,4.802 1.833,4.302 true 1.896,4.802 1.646,4.302 true 2.354,4.802 2.604,4.302 true 2.448,4.802 2.781,4.302 true 3.125,4.781 3.042,4.281 true 2.083,4.802 2,4.302 true 3.417,4.813 3.917,4.313 true 0.833,1.865 0.75,1.365 true 3.219,4.802 3.302,4.302 true 3.167,5.781 2.917,5.031 true 1.042,2.698 0.958,2.198 true 3.313,4.813 3.729,4.313 true 6.167,1.865 6.083,1.365 true 3.865,5.781 3.198,5.031 true 6.146,0.625 6.438,0.833 0.292,0.208 10 false z18 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 6.417,1.167 6.625,1.396 0.208,0.229 10 false E 6.771,2.531 7.156,2.76 0.385,0.229 10 false WF 6.583,2.688 7.125,2.927 0.542,0.24 10 false MIST 6,2.698 6.229,2.938 0.229,0.24 10 false +2 5.365,2.521 5.906,2.76 0.542,0.24 10 false W_OFF 6.333,2.688 6.563,2.927 0.229,0.24 10 false +S 5.75,2.698 5.979,2.938 0.229,0.24 10 false +1 0.031,2.719 0.344,2.917 0.313,0.198 10 false TR 0.271,2.719 0.583,2.917 0.313,0.198 10 false A 0.417,2.719 0.729,2.917 0.313,0.198 10 false CR 0.667,2.719 0.979,2.917 0.313,0.198 10 false EL 1.229,2.719 1.542,2.917 0.313,0.198 10 false T 0.021,1.219 0.333,1.417 0.313,0.198 10 false HU 1.25,1.219 1.563,1.417 0.313,0.198 10 false HF 1,1.219 1.313,1.417 0.313,0.198 10 false H 0.469,1.219 0.781,1.417 0.313,0.198 10 false TL 2.5,5.781 3.115,5.979 0.615,0.198 10 false MIST 3.115,5.781 3.427,5.979 0.313,0.198 10 false WF 3.635,5.781 3.948,5.979 0.313,0.198 10 false E 2.302,5.781 2.615,5.979 0.313,0.198 10 false +2 1.938,5.781 2.25,5.979 0.313,0.198 10 false +S 2.135,5.781 2.448,5.979 0.313,0.198 10 false +1 1.417,5.781 2.188,5.979 0.771,0.198 10 false W_OFF 1.958,4.135 2.115,4.333 0.156,0.198 10 false A 2.135,4.135 2.448,4.333 0.313,0.198 10 false HU 1.792,4.135 1.948,4.333 0.156,0.198 10 false H 1.615,4.135 1.771,4.333 0.156,0.198 10 false T 2.365,4.135 2.677,4.333 0.313,0.198 10 false HF 2.563,4.135 2.875,4.333 0.313,0.198 10 false TR 2.76,4.135 3.073,4.333 0.313,0.198 10 false TL 2.927,4.135 3.24,4.333 0.313,0.198 10 false CR 2.729,3.885 3.188,4.083 0.458,0.198 10 false z17 3.865,4.135 4.177,4.333 0.313,0.198 10 false EL 0.865,0.625 1.323,0.823 0.458,0.198 10 false A 0.646,1.219 1.104,1.417 0.458,0.198 10 false BFG 3.177,4.135 3.635,4.333 0.458,0.198 10 false BFG 1.021,2.719 1.333,2.917 0.313,0.198 10 false B 3.688,4.135 4,4.333 0.313,0.198 10 false B 5.917,1.167 6.229,1.365 0.313,0.198 10 false VR 3.833,5.781 4.146,5.979 0.313,0.198 10 false VR

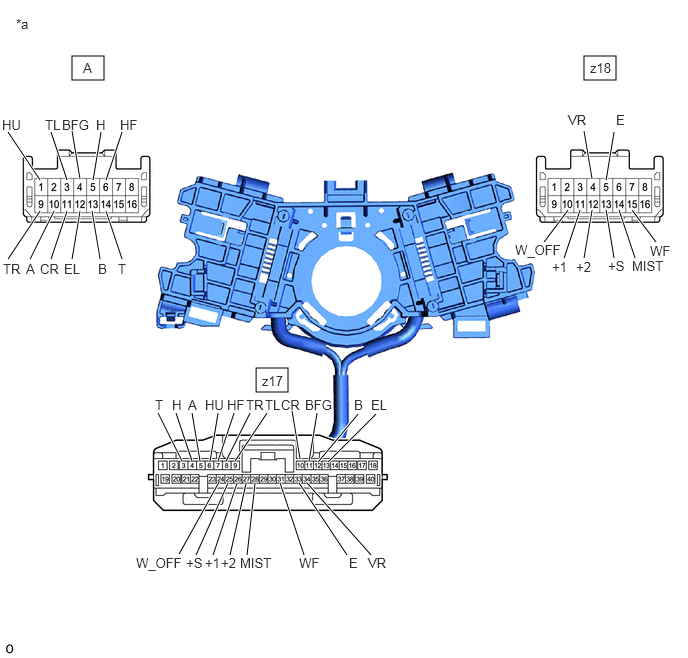

*a Component without harness connected
(Steering Wheel Switch Housing) 		- -


a.

Resistance Check

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Light Switch Circuit
Tester Connection Condition Specified Condition

*1: w/ Front Fog Light

A-14 (T) - z17-3 (T) Always Below 1 Ω
A-5 (H) - z17-4 (H) Always Below 1 Ω
A-10 (A) - z17-5 (A) Always Below 1 Ω
A-1 (HU) - z17-6 (HU) Always Below 1 Ω
A-6 (HF) - z17-7 (HF) Always Below 1 Ω
A-9 (TR) - z17-8 (TR) Always Below 1 Ω
A-3 (TL) - z17-9 (TL) Always Below 1 Ω
A-11 (CR) - z17-10 (CR) Always Below 1 Ω
A-4 (BFG) - z17-11 (BFG)*1 Always Below 1 Ω
A-13 (B) - z17-12 (B) Always Below 1 Ω
A-12 (EL) - z17-13 (EL) Always Below 1 Ω

Wiper Switch Circuit
Tester Connection Condition Specified Condition

*1: w/ Adjusting Ring

z18-10 (W_OFF) - z17-24 (W_OFF) Always Below 1 Ω
z18-13 (+S) - z17-25 (+S) Always Below 1 Ω
z18-11 (+1) - z17-26 (+1) Always Below 1 Ω
z18-12 (+2) - z17-27 (+2) Always Below 1 Ω
z18-14 (MIST) - z17-28 (MIST) Always Below 1 Ω
z18-15 (WF) - z17-31 (WF) Always Below 1 Ω
z18-5 (E) - z17-33 (E) Always Below 1 Ω
z18-4 (VR) - z17-34 (VR)*1 Always Below 1 Ω


If the result is not as specified, replace the steering wheel switch housing.
