RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0394268 SWITCH HOUSING A

LIGHTING (EXT)  SWITCH HOUSING  INSTALLATION


PROCEDURE

Hide 84319 1.INSTALL STEERING WHEEL SWITCH HOUSING

a.

When reusing the steering wheel switch housing:

i.

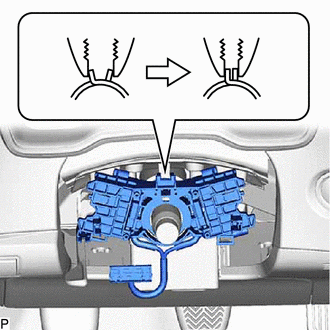

E399566

Using pliers, expand the clamp and temporarily install the steering wheel switch housing as shown in the illustration.


ii.

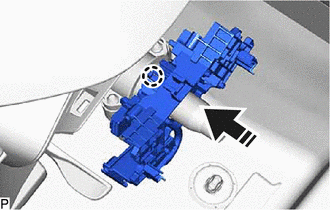

E399567C01
0,0 0,0 false
V113147

Install in this Direction


While holding the clamp expanded, engage the claw as shown in the illustration.


iii.

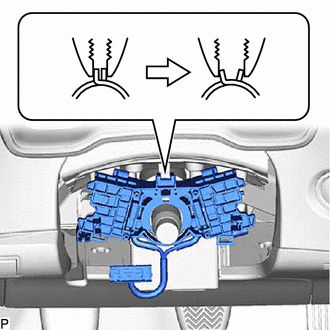

E399568

Release the clamp to install the steering wheel switch housing as shown in the illustration.



b.

When installing a new steering wheel switch housing:

i.

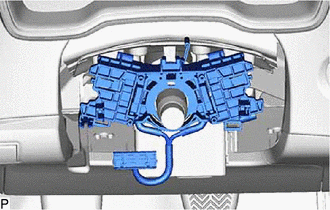

E399569

Temporarily install the steering wheel switch housing.


ii.

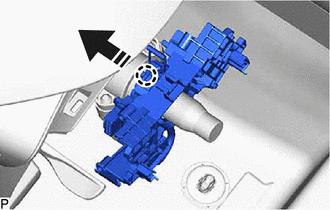

E399570C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw as shown in the illustration.


iii.

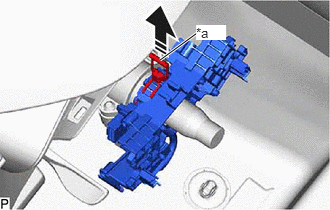

E399571C01
1.667,0.625 2.052,0.344 true 2.042,0.26 2.354,0.417 0.313,0.156 10 true *a
*a Pin
V113147

Remove in this Direction


Remove the pin to install the steering wheel switch housing as shown in the illustration.
