MAINTENANCE TAIL LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER

Hide Display 2.REMOVE TAIL LIGHT BULB

0,0 0,0 false

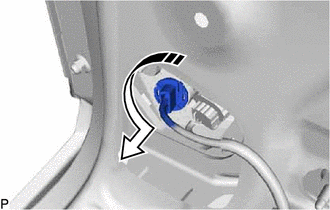

Disconnect in this Direction

Turn the rear light socket and wire with the tail light bulb as shown in the illustration to disconnect them as a unit.

Remove the tail light bulb from the rear light socket and wire.
