RM3660EC _51 Engine / Hybrid System _080750 NR Series FUEL _0393849 FUEL PUMP A

NR Series FUEL  FUEL PUMP  REASSEMBLY


PROCEDURE

Hide 23220A 1.INSTALL FUEL PUMP WITH FILTER ASSEMBLY

HINT:

Perform "Inspection After Repair" after replacing the fuel pump with filter assembly.

Click hereEngine / Hybrid System>NR Series (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION


a.

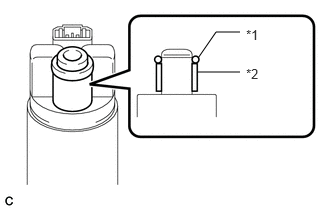

A288172C01
2.052,0.75 2.5,0.75 false 2.063,0.604 2.25,0.333 2.25,0.333 2.5,0.333 false 2.563,0.281 2.875,0.438 0.313,0.156 10 *1 2.563,0.688 2.875,0.844 0.313,0.156 10 *2
*1 O-ring
*2 Fuel Pump Spacer


Apply gasoline to a new O-ring. Then install the O-ring and fuel pump spacer to the fuel pump with filter assembly.


b.

Connect the fuel pump harness connector to install the fuel pump harness to the fuel pump with filter assembly.


c.

Engage the 5 claws to install the fuel pump with filter assembly to the fuel filter.

NOTICE:
·

Make sure that the O-ring is not cut or pinched during the installation.

·

Securely engage the claws.

·

Do not remove the suction filter.




d.

Engage the 2 claws to install the No. 1 fuel suction support to the fuel filter.


e.

Engage the 2 claws to install the fuel filter to the No. 1 fuel sub-tank.

NOTICE:
·

Do not apply excessive force to the tube or No. 1 fuel suction support.

·

Securely engage the claws.




f.

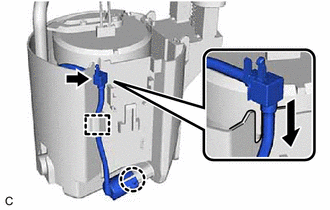

A446292

Engage the clamp and claw, and connect the fuel pump filter hose while aligning it with the installation position of the No. 1 fuel sub-tank.

NOTICE:

Securely engage the claws.



g.

Connect the fuel pump harness connector.
