RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393737 ROOM TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING ROOM TEMPERATURE SENSOR REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0060,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0060,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0060,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0052,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0052,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0052,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0052,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 88625Q 3.REMOVE COOLER (ROOM TEMP. SENSOR) THERMISTOR

a.

E400634C01

0,0 0,0 false

V113147

Remove in this Direction

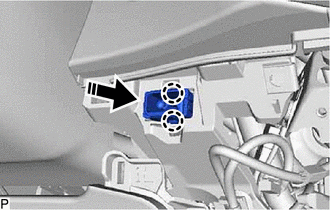

Disengage the 2 claws as shown in the illustration.

b.

E400636

Disconnect the connector and aspirator to remove the cooler (room temp. sensor) thermistor.
