RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393736 CONDENSER A

HEATING / AIR CONDITIONING  CONDENSER  REASSEMBLY


PROCEDURE

Hide 88474 1.INSTALL COOLER DRYER

a.
E399435C01
0.771,1.583 1.354,1.583 false 0.563,1.5 0.875,1.656 0.313,0.156 10 false *a
*a Modulator

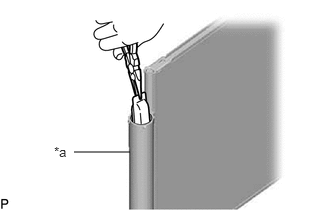

Using pliers, install a new cooler dryer to the modulator.


b.
E399436

Sufficiently apply compressor oil to 3 O-rings and the fitting surfaces of a new cap.

Refrigerant Compressor Oil
for Gasoline Model ND-OIL 8 or equivalent
for HV Model ND-OIL 11 or equivalent

NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.



c.
E399437C01
0.854,1.75 1.354,1.75 false 0.646,1.667 0.958,1.823 0.313,0.156 10 false *a
*a Modulator

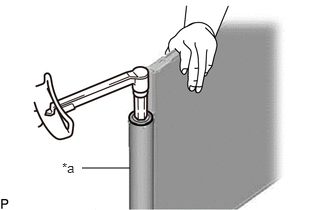

Using a 14 mm straight hexagon, install the cap to the modulator.

Torque:
4.0 N*m (41 kgf*cm, 35 in.*lbf)
