HEATING / AIR CONDITIONING  CONDENSER  DISASSEMBLY


PROCEDURE

Hide 88474 1.REMOVE COOLER DRYER

a.

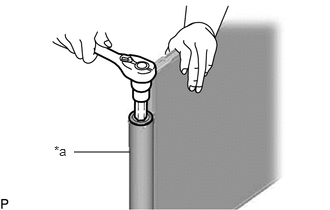

E399434C01
0.771,1.583 1.354,1.583 false 0.563,1.49 0.875,1.646 0.313,0.156 10 false *a
*a Modulator


Using a 14 mm straight hexagon, remove the cap from the modulator.


b.
E399435C01
0.771,1.583 1.354,1.583 false 0.563,1.5 0.875,1.656 0.313,0.156 10 false *a
*a Modulator


Using pliers, remove the cooler dryer from the modulator.
