RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393733 BLOWER RESISTOR A

HEATING / AIR CONDITIONING BLOWER RESISTOR REMOVAL

PROCEDURE

Hide Display 55607 1.REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>REMOVAL201906,202007,_58,_080744,_0393716,RM100000001HZGT_01_0172,202007,202104,_58,_080744,_0393716,RM100000001R7UQ_01_0172,202104,202205,_58,_080744,_0393716,RM100000001VMJZ_01_0172,202205,202304,_58,_080744,_0393716,RM1000000022YDK_01_0172,202304,202307,_58,_080744,_0393716,RM100000002B100_01_0172,202307,999999,_58,_080744,_0393716,RM100000002D3SY_01_0172,

Hide Display 2.REMOVE BLOWER RESISTOR

a.

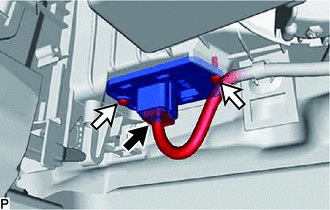

E418741

Disconnect the connector.

b.

Remove the 2 screws and blower resistor.

NOTICE:: Replace the blower resistor if it has been dropped or subjected to a severe impact.
