RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393727 REFRIGERANT LINE(for Gasoline Model) A

HEATING / AIR CONDITIONING  REFRIGERANT LINE(for Gasoline Model)  INSTALLATION


PROCEDURE

Hide 1.INSTALL PIPING CLAMP (for Suction Hose Sub-assembly Side)

a.

Remove the vinyl tape from the suction pipe sub-assembly and suction hose sub-assembly.


b.

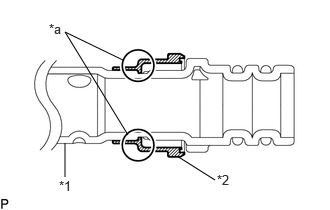

E399245C02
1.333,1.406 0.677,0.333 0.677,0.333 1.281,0.625 false 0.677,1.844 0.677,1.49 false 2.24,1.875 1.844,1.625 false 0.615,1.854 0.917,2.083 0.302,0.229 10 false *1 2.26,1.792 2.563,2 0.302,0.208 10 false *2 0.51,0.219 0.781,0.5 0.271,0.281 10 false *a
*1 Suction Hose Sub-assembly
*2 Piping Clamp
*a Groove


Install a new piping clamp to the suction hose sub-assembly.

NOTICE:
·

Securely engage the piping clamp to the groove of the suction hose sub-assembly.

·

Do not open the piping clamp more than the diameter of the suction hose sub-assembly when installing it.

·

Do not install the piping clamp with the large diameter section facing the wrong direction.




c.

Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the suction hose sub-assembly.

Compressor Oil:

ND-OIL 8 or equivalent



d.

Install the 2 O-rings to the suction hose sub-assembly.

NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt and foreign matter.



e.

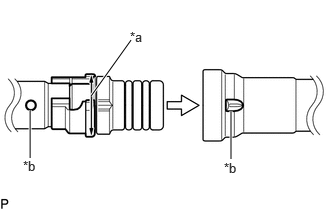

E396114C03
0.313,1.646 0.313,1.146 true 2.406,1.656 2.406,1.156 true 0.948,1 1.365,0.417 true 1.354,0.302 1.604,0.552 0.25,0.25 10 false *a 0.24,1.646 0.458,1.885 0.219,0.24 10 false *b 2.333,1.667 2.552,1.906 0.219,0.24 10 false *b
*a Large Diameter Section of Piping Clamp
*b Alignment Mark


Align the alignment marks and connect the suction pipe sub-assembly and suction hose sub-assembly.

NOTICE:

Connect the parts by holding the tubes, not the piping clamp.



f.
E399247C01
1.531,1.49 1.927,1.792 true 1.948,1.719 2.26,1.958 0.313,0.24 10 false *a
*a Large Diameter Section of Piping Clamp


Securely insert the piping clamp to the point where the large diameter section of the piping clamp is covered by the suction pipe sub-assembly.

NOTICE:
·

When inserting, make sure that a click sound is heard.

·

Check that the suction hose sub-assembly is securely connected by pulling it.
