RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393172 STOP LIGHT SWITCH A

LIGHTING (EXT) STOP LIGHT SWITCH REMOVAL

PROCEDURE

Hide Display 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL201906,202007,_58,_080744,_0393717,RM100000001HZH1_01_0060,202007,202101,_58,_080744,_0393717,RM100000001NS0W_01_0060,202101,202104,_58,_080744,_0393717,RM100000001T6FR_01_0060,202104,202304,_58,_080744,_0393717,RM100000001VMKU_01_0060,202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0060,

Hide Display 87211 2.REMOVE NO. 1 AIR DUCT

Click hereSteering>STEERING COLUMN>STEERING COLUMN ASSEMBLY>REMOVAL201906,202104,_55,_080762,_0391589,RM100000001HLA6_01_0121,202104,202205,_55,_080762,_0391589,RM100000001VPLJ_01_0121,202205,202304,_55,_080762,_0391589,RM1000000022Y8G_01_0121,202304,999999,_55,_080762,_0391589,RM100000002BCU5_01_0121,

Hide Display 84340 3.REMOVE STOP LIGHT SWITCH ASSEMBLY

a.

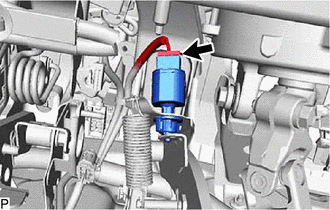

E399581

Disconnect the connector.

b.

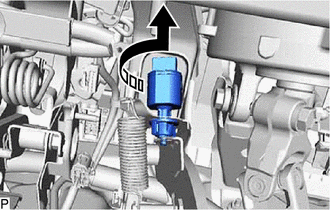

E399582C01

0,0 0,0 false

V113147

Remove in this Direction

Turn the stop light switch assembly counterclockwise and remove it.
