Vehicle Exterior
_080784
LIGHTING (EXT)
_0393169
HEADLIGHT DIMMER SWITCH
A
LIGHTING (EXT) HEADLIGHT DIMMER SWITCH REMOVAL
PROCEDURE
45287
1.REMOVE LOWER STEERING COLUMN COVER
45286B
2.REMOVE UPPER STEERING COLUMN COVER
84329
3.REMOVE TURN SIGNAL SWITCH
a.

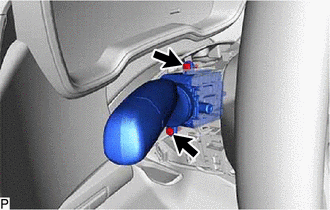

Remove the 2 screws.
b.
2.646,1.281 2.313,0.781
true
2.677,1.219 2.99,1.375
0.313,0.156
10
true

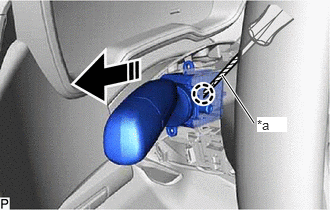

*a
| *a | Protective Tape |
|
Remove in this Direction |
Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.
- NOTICE:
-
If the claw is pulled with excessive force, it may break.
