HEADLIGHT DIMMER SWITCH
G
LIGHTING (EXT) HEADLIGHT DIMMER SWITCH INSPECTION
PROCEDURE
84329
1.INSPECT TURN SIGNAL SWITCH
1.615,1.01 1.531,0.333
true
1.417,1 1.167,0.333
true
2.021,1.01 2.271,0.333
true
1.188,2 1.438,1.417
true
1.552,2 1.635,1.417
true
1.917,2 1.833,1.417
true
2.417,1 3,0.333
true
2.479,2 2.229,1.417
true
2.833,2 2.417,1.417
true
2.198,2 2.031,1.417
true
1.833,1 1.917,0.333
true
0.167,0.177 0.479,0.333
0.313,0.156
10
false
*a
1.417,0.167 1.573,0.365
0.156,0.198
10
false
H
3.042,0.167 3.281,0.417
0.24,0.25
10
false
HU
1.083,1.917 1.24,2.115
0.156,0.198
10
false
T
2.854,1.917 3.167,2.115
0.313,0.198
10
false
TR
1,0.167 1.24,0.417
0.24,0.25
10
false
HF
1.979,1.917 2.292,2.115
0.313,0.198
10
false
EL
2.313,0.167 2.625,0.365
0.313,0.198
10
false
TL
2.521,1.917 2.833,2.115
0.313,0.198
10
false
A
2.229,1.917 2.542,2.115
0.313,0.198
10
false
CR
1.417,1.917 1.729,2.115
0.313,0.198
10
false
B
1.792,0.167 2.25,0.365
0.458,0.198
10
false
BFG

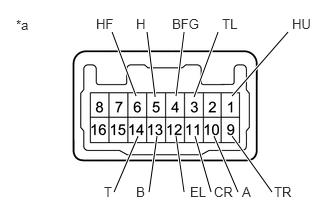

| *a | Component without harness connected
(Turn Signal Switch) |
a.
Resistance Check
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Light Control Switch Tester Connection Condition Specified Condition 10 (A) - 12 (EL) Light control switch in AUTO position Below 1 Ω 14 (T) - 12 (EL) Light control switch in tail position Below 1 Ω 5 (H) - 12 (EL) Light control switch in head position Below 1 Ω
Dimmer Passing Switch Tester Connection Condition Specified Condition 6 (HF) - 12 (EL) Dimmer switch in high flash position Below 1 Ω 1 (HU) - 12 (EL) Dimmer switch in high position Below 1 Ω
Fog Light Switch Tester Connection Condition Specified Condition *1: w/ Front Fog Light
13 (B) - 12 (EL) Fog light switch in rear position Below 1 Ω 4 (BFG) - 12 (EL) Fog light switch in front position*1 Below 1 Ω
Turn Signal Switch Tester Connection Condition Specified Condition 9 (TR) - 12 (EL) Turn signal switch in neutral position 10 kΩ or higher 3 (TL) - 12 (EL) Turn signal switch in neutral position 10 kΩ or higher 9 (TR) - 12 (EL) Turn signal switch in right turn position Below 1 Ω 9 (TR) - 12 (EL) Turn signal switch in full right turn position Below 1 Ω 9 (TR) - 11 (CR) Turn signal switch in full right turn position Below 1 Ω 11 (CR) - 12 (EL) Turn signal switch in full right turn position Below 1 Ω 3 (TL) - 12 (EL) Turn signal switch in left turn position Below 1 Ω 3 (TL) - 12 (EL) Turn signal switch in full left turn position Below 1 Ω 3 (TL) - 11 (CR) Turn signal switch in full left turn position Below 1 Ω 11 (CR) - 12 (EL) Turn signal switch in full left turn position Below 1 Ω
If the result is not as specified, replace the turn signal switch.
- HINT:
- ·
The left turn or right turn condition indicates a condition in which the turn signal switch will return to the neutral position after releasing your hand from the turn signal switch (turn signal switch is operated approximately 6.3°).
·The full left turn or full right turn condition indicates a condition in which the turn signal switch will not return to the neutral position after releasing your hand from the turn signal switch (turn signal switch is operated 10.5°).
