RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393160 REAR COMBINATION LIGHT ASSEMBLY(for GTMC Made) G

LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for GTMC Made)  INSPECTION


PROCEDURE

Hide 81560 1.INSPECT REAR COMBINATION LIGHT ASSEMBLY LH

E371639C32
0.948,1.688 1.448,1.917 true 2,2.417 2.5,2.646 true 2,1.917 2.5,1.729 true 0.448,0.5 0.76,0.698 0.313,0.198 10 false *a 0.771,1.583 1.083,1.781 0.313,0.198 10 false TL 2.542,2.583 2.854,2.781 0.313,0.198 10 false E 2.521,1.583 2.833,1.781 0.313,0.198 10 false STP

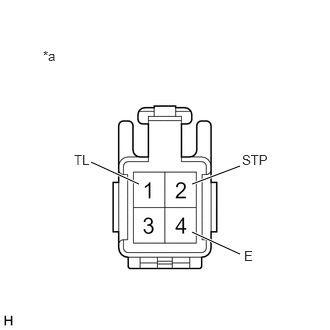

*a Component without harness connected
(Rear Combination Light Assembly LH)


a.

Illumination Inspection

i.

Apply auxiliary battery voltage to the rear combination light assembly LH and check that the light illuminates.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 1 (TL)
Auxiliary battery negative (-) → Terminal 4 (E) 		Tail light illuminates
Auxiliary battery positive (+) → Terminal 2 (STP)
Auxiliary battery negative (-) → Terminal 4 (E) 		Stop light illuminates


If the result is not as specified, replace the rear combination light assembly LH.



Hide 81550 2.INSPECT REAR COMBINATION LIGHT ASSEMBLY RH

E371639C32
0.948,1.688 1.448,1.917 true 2,2.417 2.5,2.646 true 2,1.917 2.5,1.729 true 0.448,0.5 0.76,0.698 0.313,0.198 10 false *a 0.771,1.583 1.083,1.781 0.313,0.198 10 false TL 2.542,2.583 2.854,2.781 0.313,0.198 10 false E 2.521,1.583 2.833,1.781 0.313,0.198 10 false STP
*a Component without harness connected
(Rear Combination Light Assembly RH)


a.

Illumination Inspection

i.

Apply auxiliary battery voltage to the rear combination light assembly RH and check that the light illuminates.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 1 (TL)
Auxiliary battery negative (-) → Terminal 4 (E) 		Tail light illuminates
Auxiliary battery positive (+) → Terminal 2 (STP)
Auxiliary battery negative (-) → Terminal 4 (E) 		Stop light illuminates


If the result is not as specified, replace the rear combination light assembly RH.
