MAINTENANCE
_0393101
LICENSE PLATE LIGHT BULB
A
MAINTENANCE LICENSE PLATE LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81270B
1.INSTALL LICENSE PLATE LIGHT BULB (for TFTM Made)
a.
Install the license plate light bulb to the housing.
b.
0,0 0,0
false
|

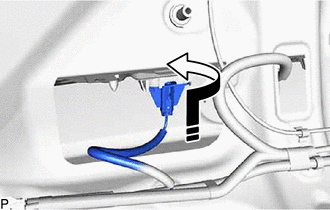

Install in this Direction |
Turn the housing with the license plate light bulb as shown in the illustration to install them as a unit.
64719A
2.INSTALL LUGGAGE COMPARTMENT DOOR COVER (for TFTM Made)
81270B
3.INSTALL LICENSE PLATE LIGHT BULB (for GTMC Made)
a.
Install the license plate light bulb to the housing.
81271

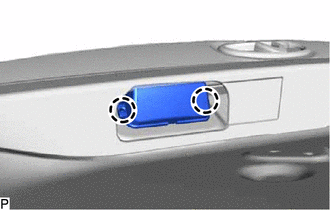

4.INSTALL LICENSE PLATE LIGHT LENS (for GTMC Made)
a.
Engage the 2 claws to install the license plate light lens.
