RM3660EC _V1 General _080956 MAINTENANCE _0393101 LICENSE PLATE LIGHT BULB A

MAINTENANCE LICENSE PLATE LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 64719A 1.REMOVE LUGGAGE COMPARTMENT DOOR COVER (for TFTM Made)

Click hereVehicle Exterior>DOOR / HATCH>LUGGAGE COMPARTMENT DOOR (for TFTM Made)>DISASSEMBLY201906,202307,_59,_080735,_0392102,RM100000001HO15_01_0030,202307,999999,_59,_080735,_0392102,RM100000002D3P8_01_0030,

Hide Display 81240B 2.REMOVE LICENSE PLATE LIGHT BULB (for TFTM Made)

0,0 0,0 false

Remove in this Direction

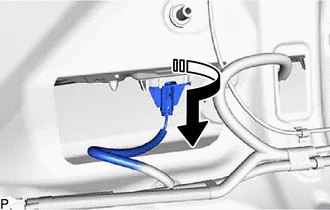

Turn the housing with the license plate light bulb as shown in the illustration to disconnect them as a unit.

Remove the license plate light bulb from the housing.

Hide Display 81271 3.REMOVE LICENSE PLATE LIGHT LENS (for GTMC Made)

0.823,2.875 1.24,2.458 true 0.51,2.51 0.927,2.094 true 0.948,1.302 1.365,0.885 true 0.708,2.896 1.021,3.052 0.313,0.156 10 true *a 0.396,2.5 0.708,2.656 0.313,0.156 10 true *b 0.813,1.292 1.125,1.448 0.313,0.156 10 false *c

*a	Protective Tape
*b	Insert into the hole
*c	License Plate Light Lens Hole

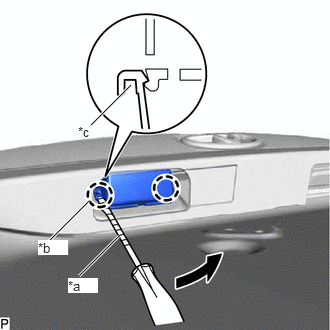

Insert a screwdriver wrapped with protective tape into the license plate light lens hole, tilt it as shown in the illustration and disengage the 2 claws to remove the license plate light lens.

Hide Display 81270B 4.REMOVE LICENSE PLATE LIGHT BULB (for GTMC Made)

Remove the license plate light bulb from the housing.
