MAINTENANCE REAR TURN SIGNAL LIGHT BULB INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
81550L

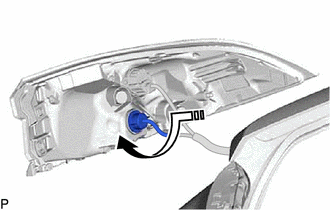

1.INSTALL REAR TURN SIGNAL LIGHT BULB (for TFTM Made)
Install the rear turn signal light bulb to the rear combination light socket and wire.
|
Install in this Direction |
Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to install them as a unit.
81550L

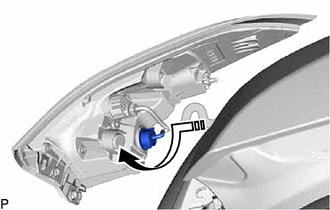

2.INSTALL REAR TURN SIGNAL LIGHT BULB (for GTMC Made)
Install the rear turn signal light bulb to the rear combination light socket and wire.
|
|
Install in this Direction |
Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to install them as a unit.
81560
3.INSTALL REAR COMBINATION LIGHT ASSEMBLY
for TFTM Made:
for GTMC Made:
81498
4.INSTALL REAR COMBINATION LIGHT COVER
for TFTM Made:
for GTMC Made:
