MAINTENANCE REAR TURN SIGNAL LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 81498 1.REMOVE REAR COMBINATION LIGHT COVER

for TFTM Made:

for GTMC Made:

Hide Display 81560 2.SEPARATE REAR COMBINATION LIGHT ASSEMBLY

for TFTM Made:

for GTMC Made:

Hide Display 81550L 3.REMOVE REAR TURN SIGNAL LIGHT BULB (for TFTM Made)

0,0 0,0 false

Disconnect in this Direction

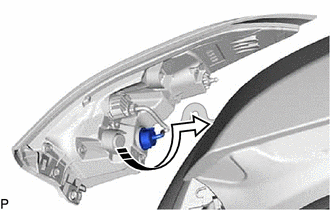

Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

Remove the rear turn signal light bulb from the rear combination light socket and wire.

Hide Display 81550L 4.REMOVE REAR TURN SIGNAL LIGHT BULB (for GTMC Made)

0,0 0,0 false

Disconnect in this Direction

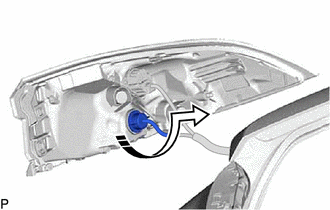

Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

Remove the rear turn signal light bulb from the rear combination light socket and wire.
