RM3660EC _V1 General _080956 MAINTENANCE _0393099 FRONT TURN SIGNAL LIGHT BULB A

MAINTENANCE FRONT TURN SIGNAL LIGHT BULB INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 1.INSTALL FRONT TURN SIGNAL LIGHT BULB

Install the front turn signal light bulb to the front turn signal light socket.

0,0 0,0 false

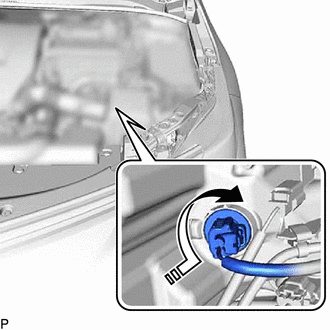

Install in this Direction

Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.
