RM3660EC _V1 General _080956 MAINTENANCE _0393099 FRONT TURN SIGNAL LIGHT BULB A

MAINTENANCE FRONT TURN SIGNAL LIGHT BULB REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 1.REMOVE FRONT TURN SIGNAL LIGHT BULB

0,0 0,0 false

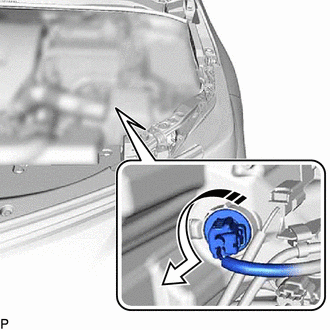

Disconnect in this Direction

Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.

Remove the front turn signal light bulb from the front turn signal light socket.
