LIGHTING (INT)  REAR DOOR COURTESY SWITCH  REMOVAL

1.REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

71940A 2.REMOVE REAR SEAT HEADREST ASSEMBLY (for Fold Down Seat Type)

73350C 3.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Fold Down Seat Type)

4.REMOVE REAR SEATBACK ASSEMBLY LH (for Fold Down Seat Type)

5.REMOVE REAR SEATBACK ASSEMBLY RH (for Fold Down Seat Type)

6.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

7.REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

72693 8.REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

67918A 9.REMOVE REAR DOOR SCUFF PLATE (for Gasoline Model)

67918A 10.REMOVE REAR DOOR SCUFF PLATE (for HV Model)

76974F 11.REMOVE REAR UNDER SIDE COVER (for HV Model)

62332A 12.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

62552F 13.REMOVE REAR SEAT SIDE GARNISH

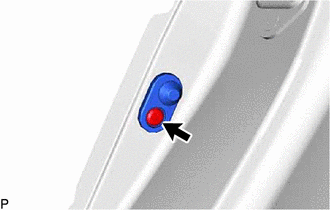

84234 14.REMOVE REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

a.

Using a T30 "TORX" socket wrench, remove the screw.

b.

Disconnect the connector to remove the rear door courtesy light switch assembly.
