LIGHTING (INT) REAR DOOR COURTESY SWITCH INSPECTION

PROCEDURE

Hide Display 84234 1.INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

1.167,1.563 1.167,1.844 1.167,1.844 1.427,1.844 false 0.167,0.167 0.49,0.469 0.323,0.302 10 false *a 1.448,1.76 1.771,2.063 0.323,0.302 10 false *b

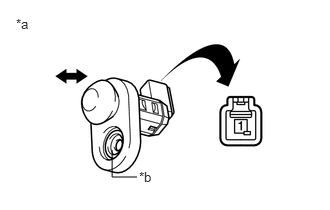

*a	Component without harness connected (Rear Door Courtesy Light Switch Assembly)
*b	Switch Body

Resistance Check

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - Switch body	Not pushed (ON)	Below 1 Ω
1 - Switch body	Pushed (OFF)	10 kΩ or higher

If the result is not as specified, replace the rear door courtesy light switch assembly.
