FRONT DOOR COURTESY SWITCH
G
LIGHTING (INT) FRONT DOOR COURTESY SWITCH INSPECTION
PROCEDURE
84233
1.INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
1.188,1.26 1.188,1.708
1.188,1.708 1.406,1.708
false
0.271,0.219 0.646,0.531
0.375,0.313
10
false
*a
1.427,1.635 1.771,1.969
0.344,0.333
10
false
*b

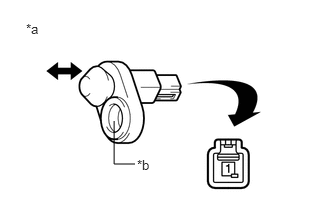

| *a | Component without harness connected
(Front Door Courtesy Light Switch Assembly) |
| *b | Switch Body |
a.
Resistance Check
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 1 - Switch body Not pushed (ON) Below 1 Ω Pushed (OFF) 10 kΩ or higher
If the result is not as specified, replace the front door courtesy light switch assembly.
