RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393090 ROOM LIGHT BULB A

LIGHTING (INT)  ROOM LIGHT BULB  REPLACEMENT


CAUTION / NOTICE / HINT

HINT:
for Type B:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the RH side.



PROCEDURE

Hide 81240B 1.REMOVE NO. 1 ROOM LIGHT BULB (for Type A)

a.
E399333C01
1.385,1.813 1.063,1.313 true 1.396,1.781 1.708,1.938 0.313,0.156 10 true *a
*a Protective Tape
V100136

Front


Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.


b.
E399339
0,0 0,0 false
V100136

Front
V113147

Remove in this Direction

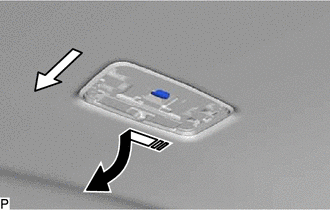

Remove the No. 1 room light bulb from the room light switch base as shown in the illustration.


Hide 81240B 2.INSTALL NO. 1 ROOM LIGHT BULB (for Type A)

a.
E399340
0,0 0,0 false
V100136

Front
V113147

Install in this Direction

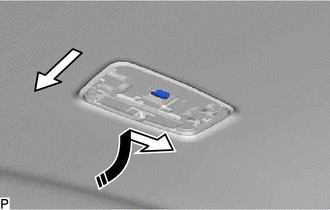

Install the No. 1 room light bulb to the room light switch base as shown in the illustration.


b.
E399334C01
0,0 0,0 false
V100136

Front

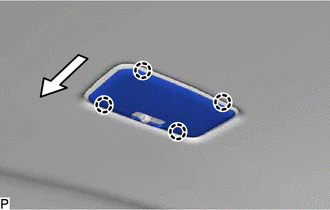

Engage the 4 claws to install the room light lens.


Hide 81360U 3.REMOVE SPOT LIGHT BULB (for Type B)

a.
E411666
0.646,1.469 1.438,1.469 true 0.417,1.406 0.729,1.563 0.313,0.156 10 true *a
*a Protective Tape
V100136

Front

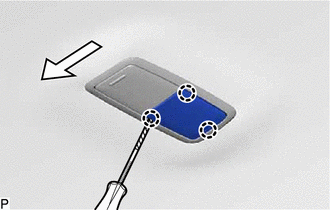

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws to remove the spot light lens RH.


b.

Remove the spot light bulb from the spot light housing.


Hide 81360U 4.INSTALL SPOT LIGHT BULB (for Type B)

a.

Install the spot light bulb to the spot light housing.


b.
E411667
0,0 0,0 false
V100136

Front

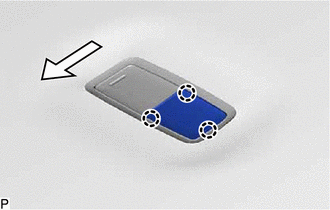

Engage the 3 claws to install the spot light lens RH.
