RM3660EC _59 Vehicle Exterior _080794 MIRROR (EXT) _0393003 OUTER MIRROR SWITCH A

MIRROR (EXT) OUTER MIRROR SWITCH REMOVAL

PROCEDURE

Hide Display 1.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0062,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0062,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0062,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0062,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0062,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0062,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0062,

Hide Display 84870A 2.REMOVE OUTER MIRROR SWITCH ASSEMBLY

a.

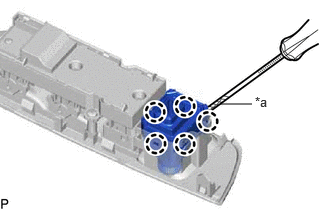

E398374C01

2.292,1.083 2.625,1.083 false 2.656,0.979 2.969,1.177 0.313,0.198 10 false *a

*a	Protective Tape

Using a screwdriver, disengage the 5 claws and remove the outer mirror switch assembly.

HINT:: Tape the screwdriver tip before use.
