PARKING BRAKE  ELECTRIC PARKING BRAKE ACTUATOR  COMPONENTS

ILLUSTRATION

1.094,0.802 2.323,1.021 1.229,0.219 1.146,0.833 2.281,0.99 1.135,0.156 1.146,0.917 0.906,0.917 0.906,0.917 0.906,1.885 false 4.969,1.344 5.458,1.344 false 2.26,1.938 2.75,1.938 false 2.823,2.573 3.313,2.573 false 2.802,1.844 3.115,2.042 0.313,0.198 10 false *2 5.531,1.25 5.844,1.448 0.313,0.198 10 false *1 3.375,2.49 3.688,2.688 0.313,0.198 10 false ●*3 0.99,1.76 1.448,1.958 0.458,0.198 10 false x 2 1.271,0.844 3.719,1 2.448,0.156 8 false 8.4 (86, 74 in.*lbf)

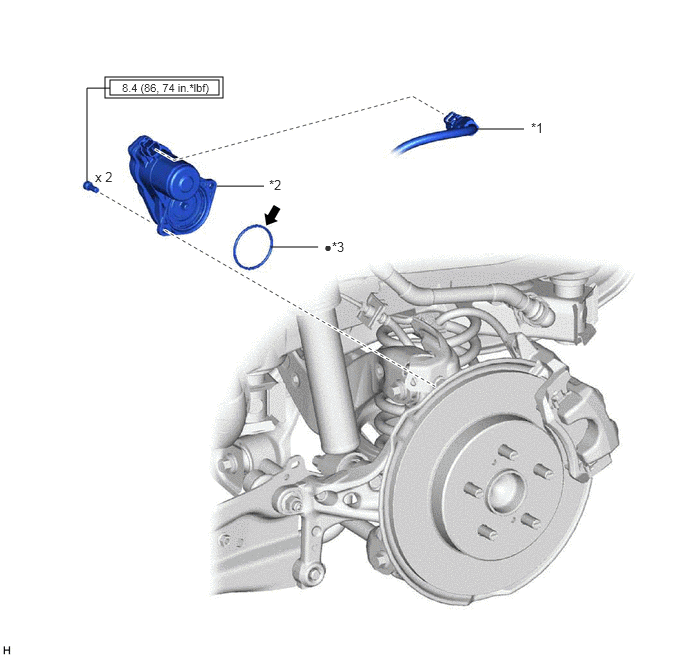

*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	PARKING BRAKE ACTUATOR ASSEMBLY
*3	O-RING	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
	Lithium soap base glycol grease	-	-
