RM3660EC _59 Vehicle Exterior _080767 WIPER / WASHER _0392876 WASHER MOTOR A

WIPER / WASHER  WASHER MOTOR  INSTALLATION


PROCEDURE

Hide 85330A 1.INSTALL WINDSHIELD WASHER JAR BUSH

a.

Install a new windshield washer jar bush to the washer jar.


Hide 85310 2.INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (for TFTM Made)

a.

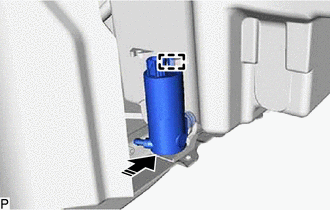

E418361C01
0,0 0,0 false
V113147

Install in this Direction


Engage the guide to install the windshield washer motor and pump assembly as shown in the illustration.


b.

Connect the connector.


c.

Connect the washer hose.


Hide 85310 3.INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY (for GTMC Made)

a.

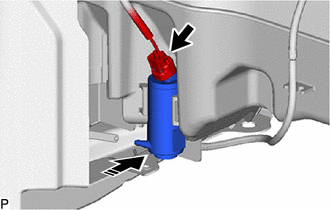

E411189C01
0,0 0,0 false
V113147

Install in this Direction


Install the windshield washer motor and pump assembly as shown in the illustration.


b.

Connect the connector.


c.

Connect the washer hose.


Hide 4.ADD WASHER FLUID

a.

Add washer fluid to the washer jar.


Hide 53875A 5.INSTALL FRONT FENDER LINER RH

a.

Install the 2 grommets.


b.

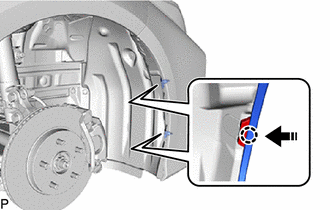

E543176C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws as shown in the illustration.


c.

Install the front fender liner RH with the 10 clips and 8 screws.


d.

Install the front bumper assembly with the 2 clips.
