WIPER / WASHER  WASHER MOTOR  REMOVAL

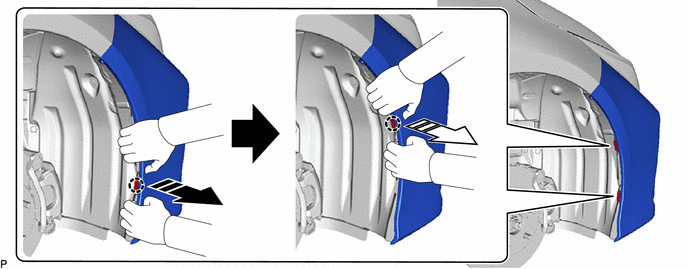

As shown in the illustration, pull the front bumper assembly horizontally to release each claw and disengage the front fender liner retainer.

0,0 0,0 false

Remove in this Direction (1)

Remove in this Direction (2)

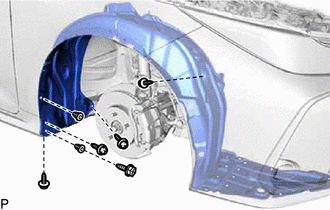

Remove the 2 clips and 3 screws.

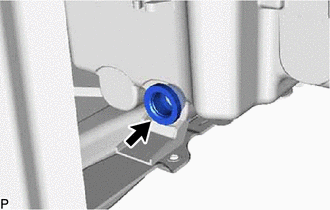

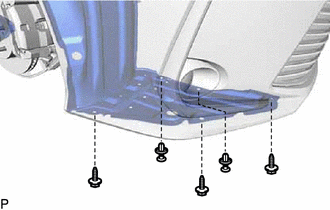

Remove the 2 grommets and 5 screws.

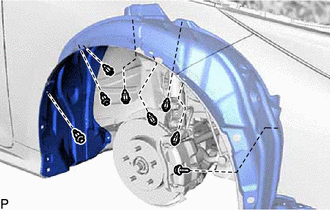

Remove the 8 clips and front fender liner RH.

Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

HINT:

Use a container to collect the washer fluid.

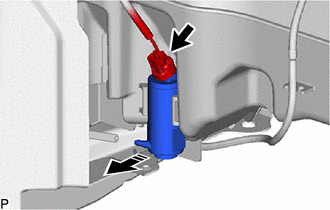

Disconnect the connector.

0,0 0,0 false

Remove in this Direction

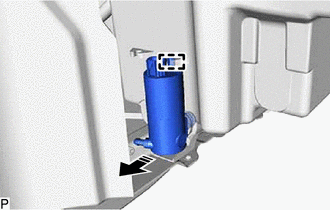

Disengage the guide to remove the windshield washer motor and pump assembly as shown in the illustration.

0,0 0,0 false

Remove in this Direction

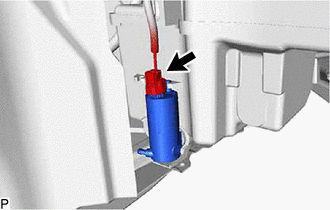

Disconnect the connector.

Remove the windshield washer jar bush from the washer jar.
