RM3660EC _59 Vehicle Exterior _080767 WIPER / WASHER _0392875 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  REMOVAL


PROCEDURE

Hide 45287 1.REMOVE LOWER STEERING COLUMN COVER

NOTICE:

Removing the lower steering column cover in the incorrect order will cause the parts to break.


a.

Release the tilt and telescopic lever and fully extend and lower the steering column assembly.


b.

Lock the tilt and telescopic lever.


c.

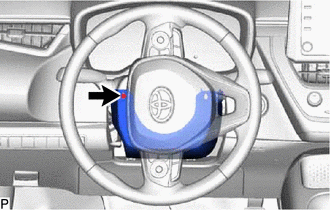

E398755

Turn the steering wheel assembly to the left and remove the screw.


d.

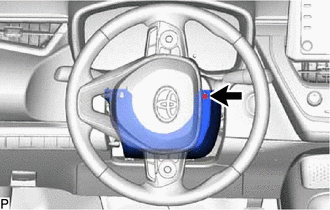

E398756

Turn the steering wheel assembly to the right and remove the screw.


e.

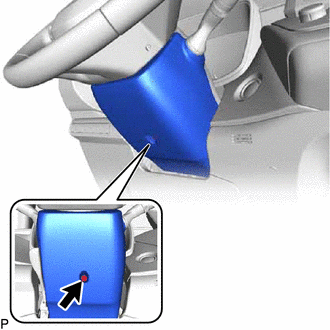

E398757

Remove the screw.


f.

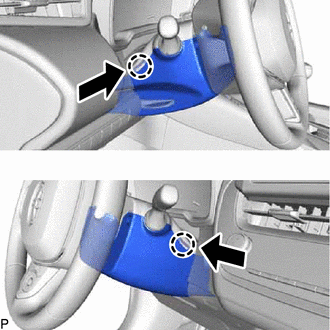

E398758C01
0,0 0,0 false
V100135

Push


Push the lower steering column cover and disengage the 2 claws as shown in the illustration.


g.
E398760

Disengage the 2 claws to remove the lower steering column cover.


Hide 45286B 2.REMOVE UPPER STEERING COLUMN COVER

a.

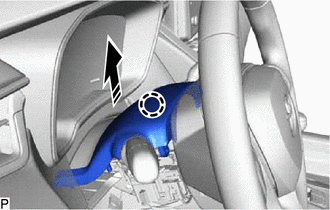

E398761C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the claw to separate the upper steering column cover as shown in the illustration.


b.

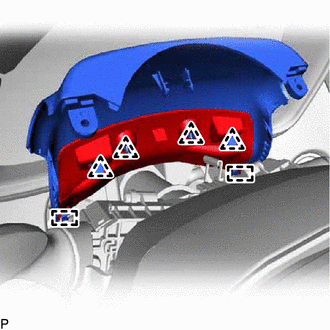

E398763

Disengage the 2 guides and 4 clips to remove the upper steering column cover.


Hide 84650 3.REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

a.

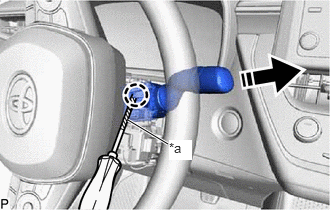

E398764C01
1.333,1.25 1.75,1.5 true 1.76,1.458 2,1.667 0.24,0.208 10 true *a
*a Protective Tape
V113147

Remove in this Direction


Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

NOTICE:

If the claw is pulled with excessive force, it may break.
