RM3660EC _59 Vehicle Exterior _080767 WIPER / WASHER _0392875 WIPER SWITCH A

WIPER / WASHER  WIPER SWITCH  INSTALLATION


PROCEDURE

Hide 84650 1.INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

a.

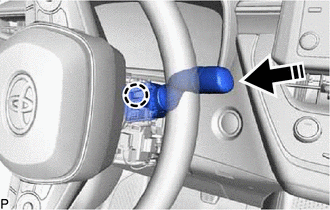

E398765C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the windshield wiper switch assembly as shown in the illustration.


Hide 45286B 2.INSTALL UPPER STEERING COLUMN COVER

a.

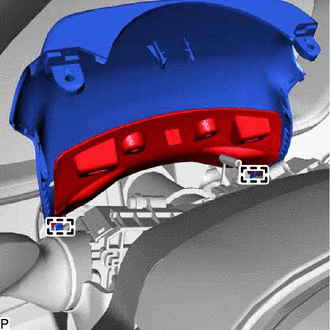

E398766

Engage the 2 guides.


b.

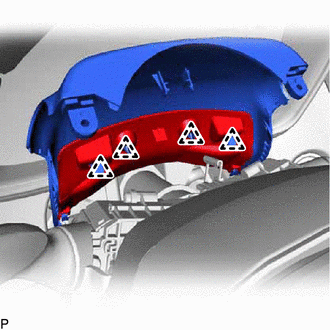

E398767

Engage the 4 clips to connect the instrument cluster finish panel retainer.


c.

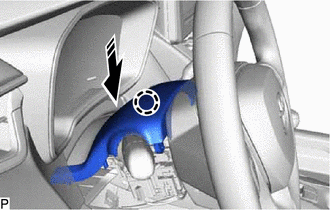

E398949C01
0,0 0,0 false
V113147

Install in this Direction


Engage the claw to install the upper steering column cover as shown in the illustration.


Hide 45287 3.INSTALL LOWER STEERING COLUMN COVER

NOTICE:

If the lower steering column cover is installed in the incorrect order, the parts may break.


a.

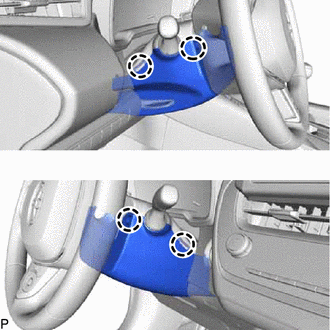

E398759

Engage the 4 claws.


b.

Install the screw.


c.

Turn the steering wheel assembly to the left and install the screw.


d.

Turn the steering wheel assembly to the right and install the lower steering column cover with the screw.
