WIPER / WASHER  FRONT WIPER MOTOR  INSPECTION


CAUTION / NOTICE / HINT

CAUTION:

Ensure that fingers or articles of clothing do not get caught in moving parts when performing this test.


PROCEDURE

Hide 85110 1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

E239382C20
1.521,1.427 1.208,1.781 true 1.917,1.427 2.24,1.781 true 2.448,0.667 2.052,1.063 true 2.208,1.76 2.448,1.938 0.24,0.177 10 false +2 1.104,1.792 1.396,2.031 0.292,0.24 10 false E 2.5,0.552 2.781,0.729 0.281,0.177 10 false +1 0.104,0.063 0.385,0.24 0.281,0.177 10 false *a

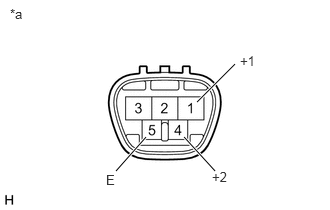

*a Component without harness connected
(Windshield Wiper Motor Assembly)


a.

Apply battery voltage to the windshield wiper motor assembly and check the LO operation.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 1 (+1)
Auxiliary battery negative (-) → Terminal 5 (E) 		Motor operates at low speed (LO)



b.

Apply battery voltage to the windshield wiper motor assembly and check the HI operation.

OK:
Condition Specified Condition
Auxiliary battery positive (+) → Terminal 4 (+2)
Auxiliary battery negative (-) → Terminal 5 (E) 		Motor operates at high speed (HI)


If the result is not as specified, replace the windshield wiper motor assembly.
