FRONT WIPER MOTOR
G
WIPER / WASHER FRONT WIPER MOTOR ON-VEHICLE INSPECTION
PROCEDURE
85110
1.INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
a.
1.146,2.646 1.667,2.479
true
0.51,2.271 0.667,2.469
0.156,0.198
10
false
A
0.49,2.51 0.646,2.708
0.156,0.198
10
false
A
1.677,2.385 1.927,2.583
0.25,0.198
10
true
*a

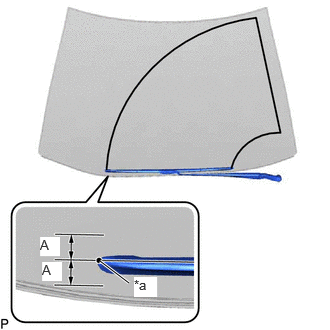

| *a | Alignment Mark |
for RH Side:
i.
Operate the windshield wiper motor assembly.
ii.
Stop the windshield wiper motor assembly operation.
iii.
Check the automatic stop (park) position.
- HINT:
-
After the front wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.
- Standard Clearance:
Area Measurement A 10 mm (0.394 in.)
- OK:
The front wiper stops at the position shown in the illustration.
b.
1.042,2.719 1.344,2.948
true
0.417,2.469 0.625,2.667
0.208,0.198
10
true
A
0.438,2.729 0.646,2.927
0.208,0.198
10
true
A
1.396,2.885 1.635,3.094
0.24,0.208
10
true
*a

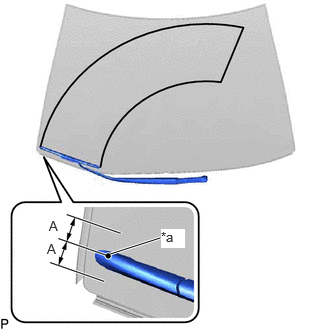

| *a | Alignment Mark |
for LH Side:
i.
Operate the windshield wiper motor assembly.
ii.
Stop the windshield wiper motor assembly operation.
iii.
Check the automatic stop (park) position.
- HINT:
-
After the front wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.
- Standard Clearance:
Area Measurement A 10 mm (0.394 in.)
- OK:
The front wiper stops at the position shown in the illustration.
