HORN  RELAY  ON-VEHICLE INSPECTION


PROCEDURE

Hide 86530 1.INSPECT HORN RELAY

E273663C16
2,0.802 2.313,0.802 false 2.885,0.802 3.167,0.802 false 2.781,1.125 3.167,1.125 false 2.781,1.573 3.167,1.573 false 0.083,0.083 0.333,0.25 0.25,0.167 10 false *a 1.896,0.719 2.063,0.885 0.167,0.167 10 false 1 3.198,0.719 3.365,0.885 0.167,0.167 10 false 2 3.198,1.042 3.365,1.208 0.167,0.167 10 false 5 3.198,1.49 3.365,1.656 0.167,0.167 10 false 3

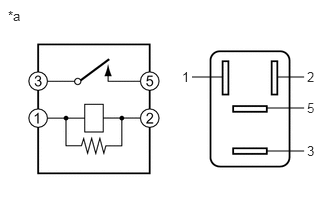

*a Component without harness connected
(HORN Relay)


a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Auxiliary battery voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Auxiliary battery voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the HORN relay.
