HORN  HORN  INSPECTION

1.542,0.354 1.896,0.208 true 1.156,1.49 1.604,1.292 true 0.125,0.104 0.438,0.26 0.313,0.156 10 false *a 1.958,0.125 2.271,0.281 0.313,0.156 10 false *b 1.656,1.208 1.969,1.365 0.313,0.156 10 false 1

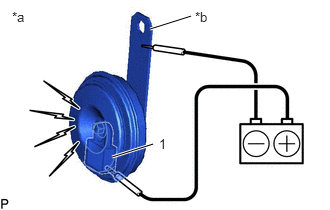

*a	Component without harness connected (High Pitched Horn Assembly)
*b	High Pitched Horn Assembly Body

Apply auxiliary battery voltage and check the operation of the high pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → High pitched horn assembly body	Horn sounds

If the result is not as specified, replace the high pitched horn assembly.

1.563,0.302 1.99,0.167 true 1.167,1.635 1.594,1.5 true 0.125,0.094 0.438,0.25 0.313,0.156 10 false *a 2.031,0.094 2.344,0.25 0.313,0.156 10 false *b 1.656,1.417 1.813,1.615 0.156,0.198 10 false 1

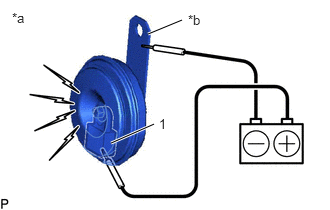

*a	Component without harness connected (Low Pitched Horn Assembly)
*b	Low Pitched Horn Assembly Body

Apply auxiliary battery voltage and check the operation of the low pitched horn assembly according to the table below.

OK:

Measurement Condition	Specified Condition
Auxiliary battery positive (+) → Terminal 1 Auxiliary battery negative (-) → Low pitched horn assembly body	Horn sounds

If the result is not as specified, replace the low pitched horn assembly.
