FRONT SUSPENSION  FRONT SHOCK ABSORBER  DISPOSAL


CAUTION / NOTICE / HINT

CAUTION:
C320205

·

Always use a cloth to prevent shards of metal from flying about due to the release of pressurized gas.

·

Always wear safety glasses.



HINT:

The gas is colorless, odorless and non-poisonous.


PROCEDURE

Hide 48520 1.DISPOSE OF FRONT SHOCK ABSORBER ASSEMBLY

a.
C410145N01
1.969,0.292 2.125,0.49 0.156,0.198 10 false A 2.615,0.281 2.771,0.479 0.156,0.198 10 false B

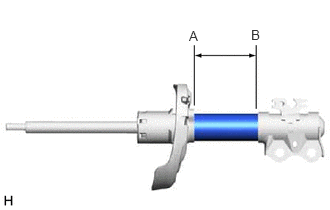

Place the front shock absorber horizontally with the piston rod extended, and using a hacksaw, make a hole between (A) and (B) shown in the illustration to discharge the gas inside.
