RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392563 REAR WHEEL HOUSE PLATE A

EXTERIOR PANELS / TRIM  REAR WHEEL HOUSE PLATE  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 65632D 1.REMOVE REAR WHEEL HOUSE FRONT PLATE

a.

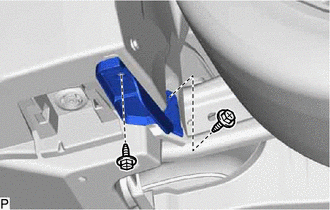

B544857

Remove the 2 screws and rear wheel house front plate.
