RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392562 FRONT PILLAR UPPER COVER A

EXTERIOR PANELS / TRIM  FRONT PILLAR UPPER COVER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 60118 1.REMOVE FRONT PILLAR UPPER COVER SUB-ASSEMBLY

a.
B518056C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the front pillar upper cover sub-assembly as shown in the illustration.


b.
B518057C01
0,0 0,0 false
V113147

Remove in this Direction

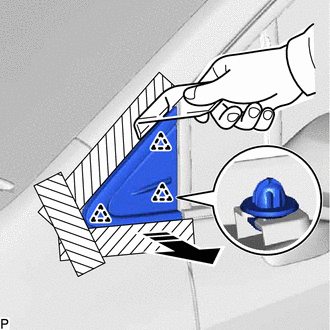

Using a moulding remover, disengage the 3 clips as shown in the illustration to remove the front pillar upper cover sub-assembly.


c.

When reusing the front pillar upper cover sub-assembly:

i.

Remove the 3 clips from the front pillar upper cover sub-assembly.
