FRONT PILLAR UPPER COVER
A
EXTERIOR PANELS / TRIM FRONT PILLAR UPPER COVER INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
60118
1.INSTALL FRONT PILLAR UPPER COVER SUB-ASSEMBLY
a.
When reusing the front pillar upper cover sub-assembly:
i.
Install 3 new clips to the front pillar upper cover sub-assembly.
b.
0,0 0,0
false
|
Install in this Direction |

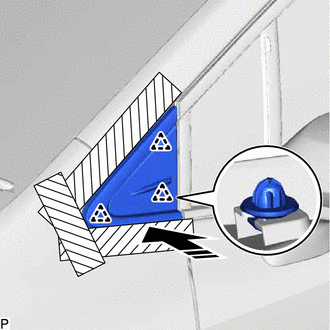

Engage the 3 clips as shown in the illustration to install the front pillar upper cover sub-assembly.
