RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392558 ROOF DRIP SIDE FINISH MOULDING A

EXTERIOR PANELS / TRIM  ROOF DRIP SIDE FINISH MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75556C 1.REMOVE CENTER ROOF DRIP SIDE FINISH MOULDING

a.

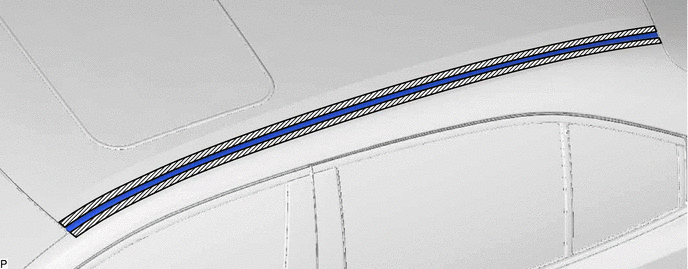

Apply protective tape around the center roof drip side finish moulding.

B544855C01
0,0 0,0 false
V100155

Protective Tape - -



b.

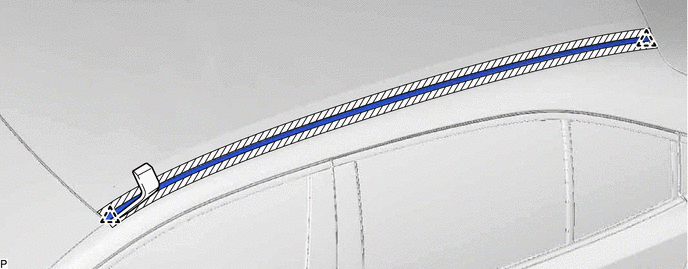

Using a moulding remover, disengage the 2 clips and remove the center roof drip side finish moulding.

B536425

NOTICE:
·

Do not remove the roof drip side finish moulding clips.

·

If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
