RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392555 ROCKER PANEL MOULDING A

EXTERIOR PANELS / TRIM  ROCKER PANEL MOULDING  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75852 2.REMOVE ROCKER PANEL MOULDING

a.

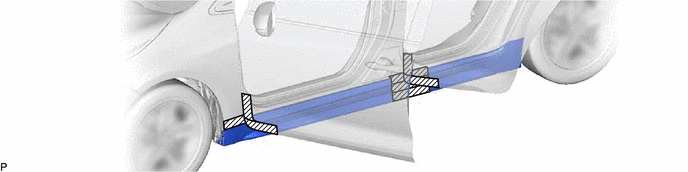

Apply protective tape around the rocker panel moulding and doors as shown in the illustration.

B544846C01
0,0 0,0 false
V100155

Protective Tape - -



b.

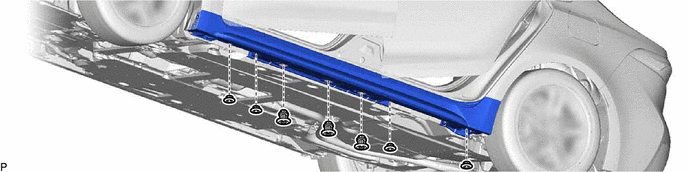

Remove the 7 clips.

B544847


c.

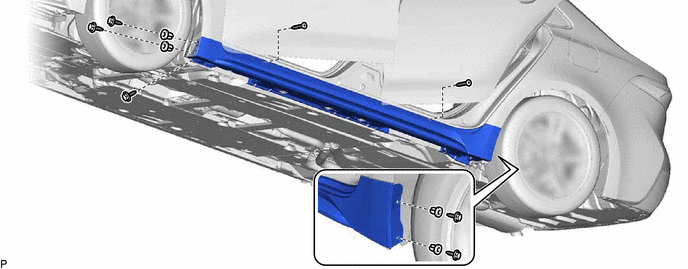

Remove the 5 screws.

B550452


d.

Remove the 2 screws.


e.

Remove the 4 grommets.


f.

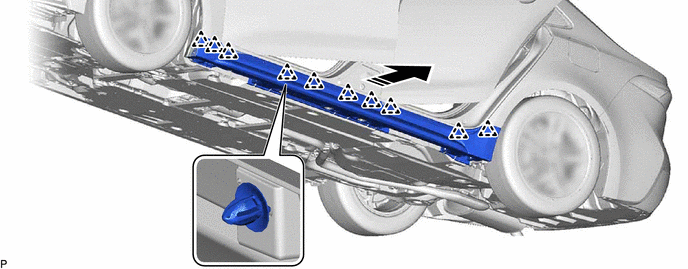

Disengage the 10 clips as shown in the illustration to remove the rocker panel moulding.

B544849C01
0,0 0,0 false
V113147

Remove in this Direction - -



g.

Remove the 10 clips from the rocker panel moulding.
