RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392555 ROCKER PANEL MOULDING A

EXTERIOR PANELS / TRIM  ROCKER PANEL MOULDING  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75852 1.INSTALL ROCKER PANEL MOULDING

a.

Install 10 new clips to the rocker panel moulding.


b.

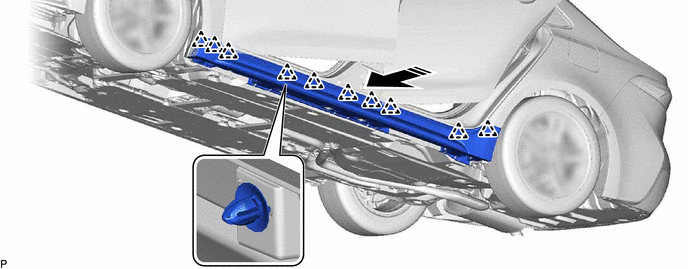

Engage the 10 clips as shown in the illustration.

B544850C01
0,0 0,0 false
V113147

Install in this Direction - -



c.

Install 4 new grommets.


d.

Install the 7 screws.


e.

Install the rocker panel moulding with 7 new clips.
