NR Series INTAKE / EXHAUST  RADIATOR  ON-VEHICLE INSPECTION


PROCEDURE

Hide 16471B 1.INSPECT RESERVE TANK CAP (for Intercooler)

a.
A287226C04
2.063,1.458 2.458,1.458 false 0.813,1.698 1.219,1.698 false 0.646,1.615 0.958,1.771 0.313,0.156 10 *a 2.5,1.375 2.813,1.531 0.313,0.156 10 *b

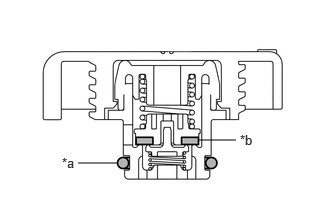

*a O-ring
*b Rubber Packing


Measure the valve opening pressure.

i.

If there are water stains or foreign matter on the O-ring, clean it with water and finger scouring.


ii.

Check that the O-ring is not deformed, cracked or swollen.


iii.

Apply engine coolant to the O-ring and rubber packing before using a radiator cap tester.


iv.
A249860C06
2.104,0.156 1.938,0.156 1.938,0.156 1.625,0.469 false 0.979,0.26 0.813,0.26 0.813,0.26 0.5,0.573 false 0.635,1.073 0.854,1.313 0.219,0.24 10 *b 2.167,0.073 2.438,0.354 0.271,0.281 10 *a 1.042,0.177 1.281,0.417 0.24,0.24 10 *1

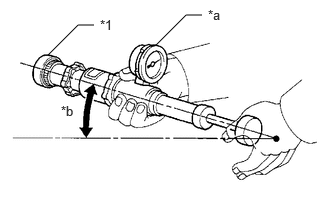

*1 Reserve Tank Cap (for Intercooler)
*a Radiator Cap Tester
*b 30° or more


When using the radiator cap tester, tilt it upwards 30° or more.


v.

Pump the radiator cap tester several times, and check the maximum pressure.

Pump Speed:

1 pump per second


Result:
Item Specified Condition
Standard pressure
(for brand-new reserve tank cap (for Intercooler)) 		93 to 123 kPa (0.9 to 1.3 kgf/cm2, 13.5 to 18.0 psi)
Minimum pressure
(for used reserve tank cap (for Intercooler)) 		79 kPa (0.8 kgf/cm2, 11.5 psi)


HINT:

Even if the reserve tank cap (for Intercooler) cannot maintain the maximum pressure, it is not a defect.


If the maximum pressure is less than the minimum pressure, replace the reserve tank cap (for Intercooler).
