NR Series EMISSION CONTROL  CANISTER  INSTALLATION

Install the No. 2 charcoal canister sub-assembly to the vehicle body with the 3 nuts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

Connect the No. 2 charcoal canister sub-assembly connector.

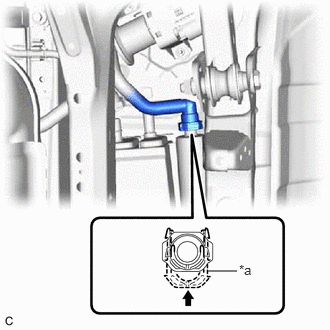

Push in the air line tube to the pipe (No. 2 charcoal canister sub-assembly) until the air line tube makes a "click" sound.

NOTICE:

·

Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (No. 2 charcoal canister sub-assembly) before performing this work.

·

After connecting the air line tube, check that the air line tube is securely connected by pulling on the tube connector.

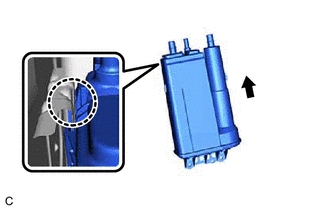

Install the clip to the vehicle body.

Engage the clip to the canister (charcoal canister assembly).

Install the 2 bolts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.

Install the rear stabilizer bar sub-assembly to the rear suspension member sub-assembly with the 4 bolts.

Torque:

78 N*m (795 kgf*cm, 58 ft.*lbf)
