NR Series EMISSION CONTROL  PCV VALVE  INSPECTION


PROCEDURE

Hide 12204 1.INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

a.

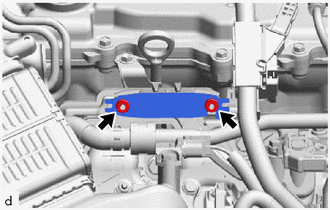

A393614

Remove the 2 nuts and air hole cover from the intake manifold.


b.

Install a clean hose to the check hole.


c.

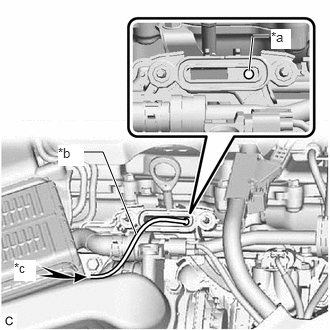

A353829C03
2.594,0.74 2.635,0.375 2.635,0.375 2.802,0.375 true 1.417,2.438 1.073,1.583 1.073,1.583 0.823,1.583 true 2.823,0.302 3.031,0.51 0.208,0.208 10 true *a 0.604,1.51 0.875,1.729 0.271,0.219 10 true *b 0.146,2.708 0.375,2.927 0.229,0.219 10 true *c
*a Check Hole
*b Hose
*c Air


Blow air into the hose, and check that air passes through with difficulty.

i.

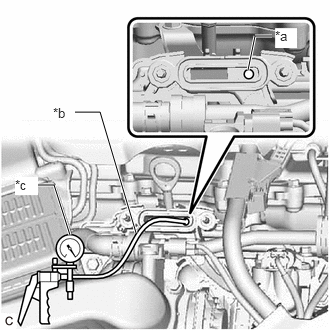

A353828C02
2.583,0.729 2.656,0.375 2.656,0.375 2.833,0.375 true 0.781,1.167 1.042,1.167 1.042,1.167 1.417,2.427 true 0.385,1.927 0.563,1.927 0.563,1.927 0.729,2.448 true 2.865,0.292 3.094,0.5 0.229,0.208 10 true *a 0.552,1.094 0.896,1.375 0.344,0.281 10 false *b 0.156,1.844 0.396,2.031 0.24,0.188 10 true *c
*a Check Hole
*b Hose
*c Vacuum Pump


Using a vacuum pump, apply vacuum to the check hole.

OK:

The vacuum is maintained at first. By gradually increasing the vacuum, air flows and the vacuum decreases after the vacuum reaches a certain level.




d.

Remove the hose from the check hole.


e.

Install the air hole cover to the intake manifold with the 2 nuts.

Torque:
9.0 N*m (92 kgf*cm, 80 in.*lbf)


f.

Check that there are no vacuum leaks at the air hole cover.
