NR Series EMISSION CONTROL  FUEL TANK CAP  INSPECTION


PROCEDURE

Hide 77310A 1.INSPECT FUEL TANK CAP ASSEMBLY

a.
A430139C01
2.438,1.26 2.604,1.5 2.604,1.5 2.844,1.5 true 2.865,1.406 3.115,1.615 0.25,0.208 10 false *a
*a Gasket


Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.

If the fuel tank cap assembly or gasket is deformed or damaged, replace it.


b.

Type A:

i.
A431879
0.469,1.583 1.021,1.583 true 0.26,1.49 0.49,1.677 0.229,0.188 10 false *a
*a ID Mark


Confirm that ID mark L is printed on the fuel tank cap assembly.

CAUTION:

Make sure to use a fuel tank cap assembly that has the correct ID mark, or a malfunction may occur in the fuel system.




c.

Type B:

i.
A478681C01

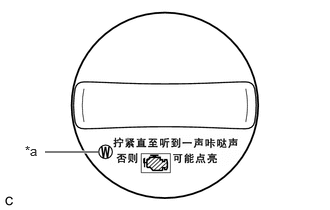

0.469,1.583 1.021,1.583 true 0.26,1.49 0.49,1.677 0.229,0.188 10 false *a
*a ID Mark


Confirm that ID mark W is printed on the fuel tank cap assembly.

CAUTION:

Make sure to use a fuel tank cap assembly that has the correct ID mark, or a malfunction may occur in the fuel system.
