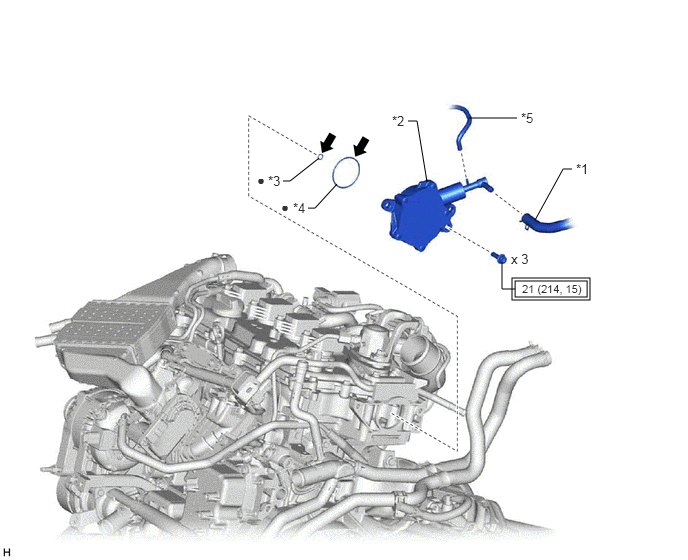

BRAKE SYSTEM (OTHER)  VACUUM PUMP(for 9NR-FTS)  COMPONENTS

ILLUSTRATION

5.365,2.927 6.115,3.094 0.75,0.167 5.333,2.896 6.146,3.125 0.813,0.229 5.229,2.729 5.229,3.01 5.229,3.01 5.365,3.01 false 2.948,1.885 3.021,1.885 3.021,1.885 3.323,1.646 false 3.208,2.167 3.281,2.167 3.281,2.167 3.51,1.917 false 4.885,1.229 5.385,1.229 false 5.573,2.292 5.865,1.76 5.865,1.76 5.958,1.76 false 4.25,1.26 4.344,1.26 4.344,1.26 4.448,1.896 false 6,1.677 6.313,1.833 0.313,0.156 10 false *1 4.083,1.177 4.396,1.333 0.313,0.156 10 false *2 2.792,1.802 3.104,1.958 0.313,0.156 10 false *3 3.052,2.083 3.365,2.24 0.313,0.156 10 false *4 5.427,1.146 5.74,1.302 0.313,0.156 10 false *5 2.677,1.792 2.833,1.948 0.156,0.156 10 false ● 5.438,2.938 6.396,3.219 0.958,0.281 8 false 21 (214, 15) 5.323,2.615 5.635,2.771 0.313,0.156 10 false x 3 2.927,2.073 3.083,2.229 0.156,0.156 10 false ●

*1	UNION TO CONNECTOR TUBE HOSE	*2	VACUUM PUMP ASSEMBLY
*3	NO. 1 O-RING	*4	NO. 2 O-RING
*5	NO. 1 VACUUM TRANSMITTING HOSE ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	●	Non-reusable part
	Engine Oil	-	-
