WINDOW / GLASS REAR POWER WINDOW SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>REAR DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392100,RM100000001HO0X_01_0047,202101,202104,_59,_080735,_0392100,RM100000001TOOZ_01_0047,202104,202107,_59,_080735,_0392100,RM100000001VMMZ_01_0047,202107,202205,_59,_080735,_0392100,RM100000001X72Q_01_0047,202205,202304,_59,_080735,_0392100,RM10000000237IZ_01_0047,202304,202307,_59,_080735,_0392100,RM100000002BHX0_01_0047,202307,999999,_59,_080735,_0392100,RM100000002D0BF_01_0047,

Hide Display 84810D 2.REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

a.

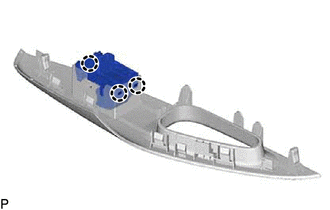

B545609

Disengage the 3 claws to remove the rear power window regulator switch assembly.
