RM3660EC _59 Vehicle Exterior _080745 WINDOW / GLASS _0392466 FRONT PASSENGER SIDE POWER WINDOW SWITCH A

WINDOW / GLASS FRONT PASSENGER SIDE POWER WINDOW SWITCH REMOVAL

PROCEDURE

Hide Display 1.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY201906,202101,_59,_080735,_0392099,RM100000001HO0T_01_0106,202101,202104,_59,_080735,_0392099,RM100000001TOOX_01_0106,202104,202107,_59,_080735,_0392099,RM100000001W09X_01_0106,202107,202205,_59,_080735,_0392099,RM100000001XPT4_01_0106,202205,202304,_59,_080735,_0392099,RM10000000237IY_01_0106,202304,202307,_59,_080735,_0392099,RM100000002BHWZ_01_0106,202307,999999,_59,_080735,_0392099,RM100000002D0BD_01_0106,

Hide Display 84810 2.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

a.

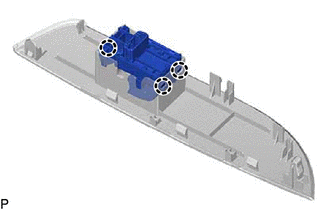

B545607

Disengage the 3 claws to remove the power window regulator switch assembly.
