RM3660EC _54 Brake _080771 BRAKE SYSTEM (OTHER) _0392411 BRAKE MASTER CYLINDER(for Gasoline Model) A

BRAKE SYSTEM (OTHER)  BRAKE MASTER CYLINDER(for Gasoline Model)  DISASSEMBLY


PROCEDURE

Hide 47201C 1.REMOVE BRAKE MASTER CYLINDER RING PIN

a.

Secure the brake master cylinder sub-assembly in a vise.

NOTICE:

Place aluminum plates on the vise to prevent damage to the brake master cylinder sub-assembly.



b.
C401002

Using a 5 mm pin punch and a hammer, tap out the brake master cylinder ring pin from the brake master cylinder sub-assembly.

NOTICE:

Do not drop the brake master cylinder reservoir assembly.



Hide 47220D 2.REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

a.

Remove the brake master cylinder reservoir assembly from the brake master cylinder body.


Hide 47255 3.REMOVE MASTER CYLINDER RESERVOIR GROMMET

a.

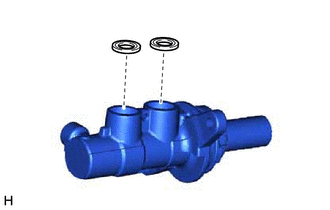

C401003

Remove the 2 master cylinder reservoir grommets from the brake master cylinder body.


b.

Remove the brake master cylinder body from the vise.


Hide 47230 4.REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

a.

Remove the brake master cylinder reservoir filler cap assembly from the brake master cylinder reservoir assembly.


Hide 47299 5.REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER

a.

Remove the brake master cylinder reservoir strainer from the brake master cylinder reservoir assembly.
